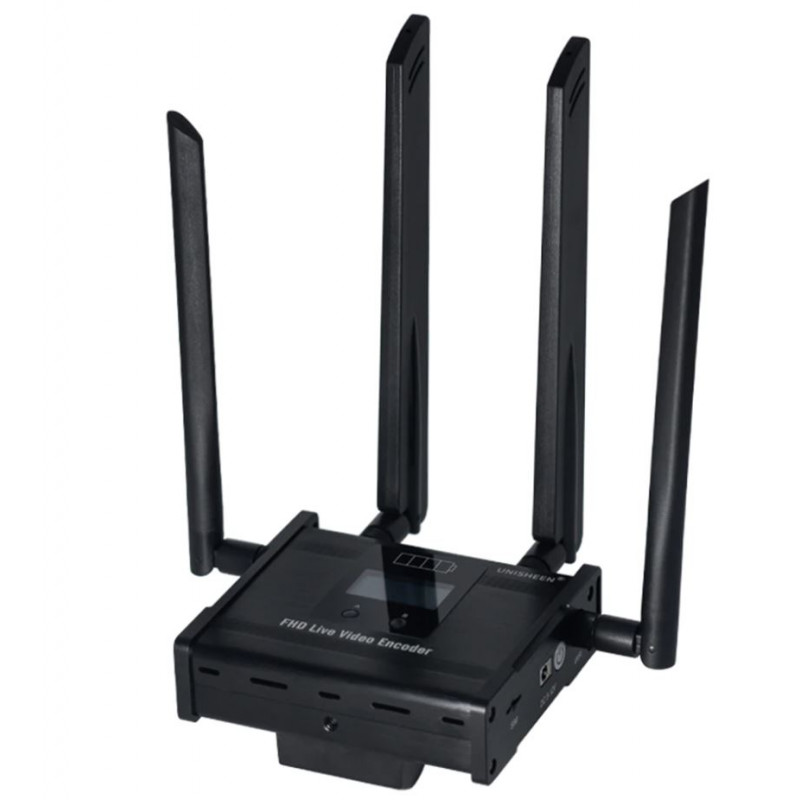

Encoder 4G LiveStreaming 1 Simcard

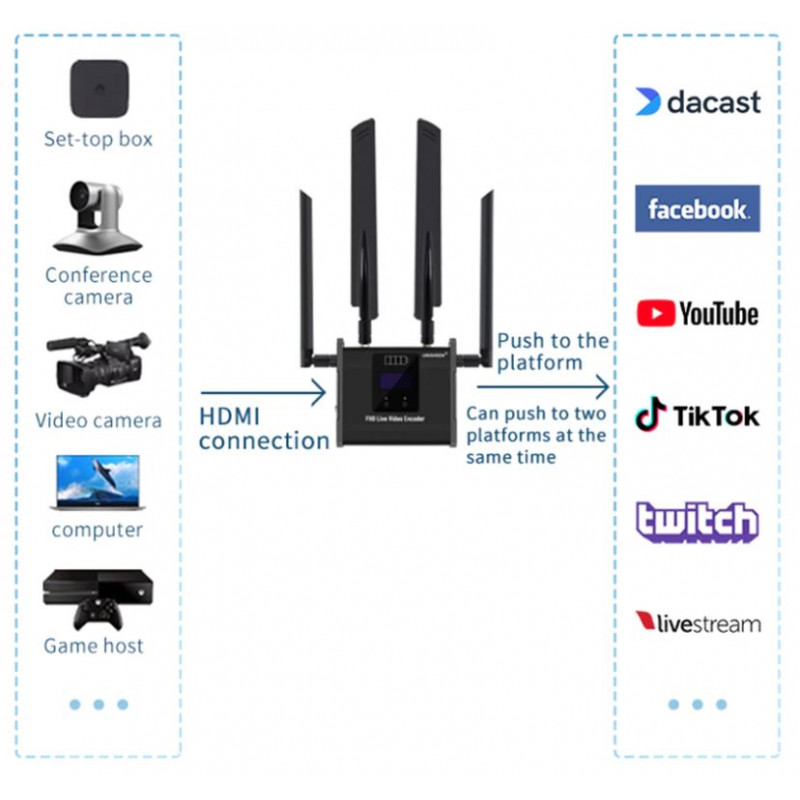

Transmite desde cualquier parte, en cualquier momento, en calidad full hd, modelos HDMI y SDI, montable en cámaras.

Video

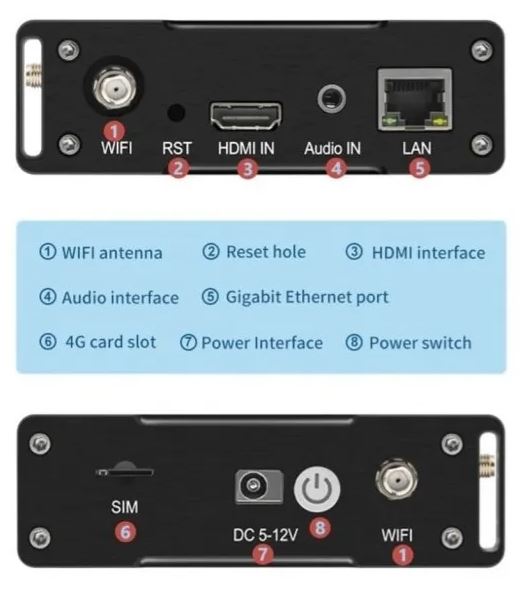

Input 1x HDMI( 1.4) HDCP
Resolution 4stream（2x1080P+2x576p）
Encoding 1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i
Output H.265 HEVC/H.264/AVC Baseline/Main/High Profile Level 4.2/Mjpeg
Bitrate 1080P60(only input 1080P60)
0.16Mbps~32Mbps
Bitrate Control CBR/VBR/Strong CBR
GOP 5-300
Advanced Brightness Contrast Hue Saturation Rotate Mirror Clip
Lantency Time 100ms
OSD 4xImage bmp png or TXT or 1xscroll txt

Audio
Input 1xHDMI Embeded
Encoding AAC/AAC+/AAC++/MP3/MP2/AC3/G711A/U
Resample 44100/48000 Hz
Bitrate 32K/48K/64K/96K/128K/160K/192K/384K
Sampling precision 24 bit

System
Ethernet 1000M Ethernet/ WIFI 2.4G/5.8G (802.11n/11g/11b)/ 3G/4G/LTE*
Protocol UTP SRT HTTP RTSP RTMP RTMPS HLS FLV RTP UDP unicast/multicast Onvif
Manager OLED/Website/CGI Command/App

Gerneral
Dimension (W×L×H) 122x88x38mm
Packing Box(WxLxH) 210x168x75mm
Net/Gross Weight 0.5kg/1.2kg
Temperature 0-45(work),-20-80(storage)
Power 5V2A,9V-12V DC 1A /Battery F550/F750/F970
Consumption 6w
